Lyndsay Freestanding Bath
Available in 2 hydrotherapy experiences
California Prop 65 Warnings
PRODUCT DETAILS

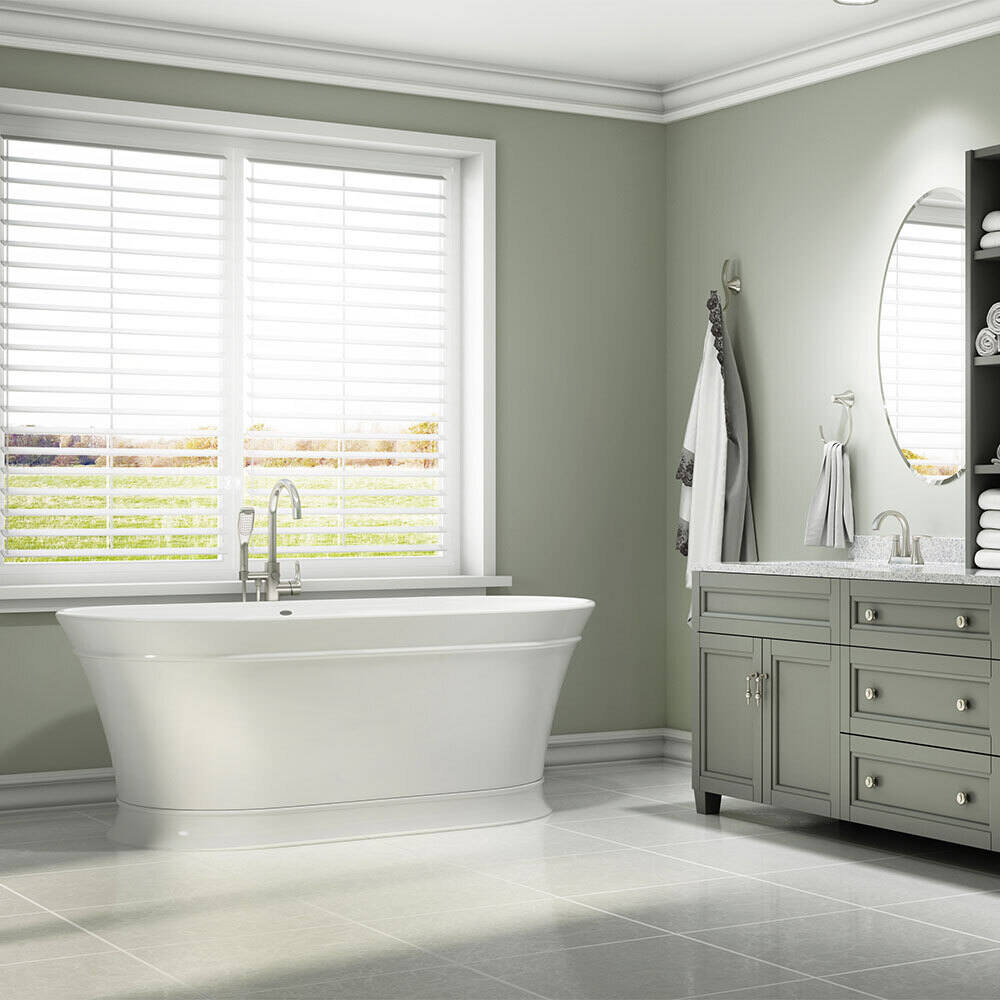

The refreshed classic design of the Lyndsay freestanding bathtub will serve as the focal point of any bathroom. This bathtub is made of durable high-gloss acrylic material that is easy to clean. An ergonomic design cradles the bather in comfort.
Lyndsay™ Freestanding Bath Features:
Benefits of a Full-Body Soak:
- Integrated linear overflow and toe-tap drain included
- Ergonomic design cradles the bather in a comfortable position
- Durable high-gloss acrylic material
- Adjustable leveling feet for easy installation
- The foundation of hydrotherapy - quiet and calming
- IAPMO/cUPC certified to stringent ANSI standards
Benefits of a Full-Body Soak:
- Relieves the weight of gravity on joints
- Provides 360-degree support for sore and tired limbs
- Decreases swelling and inflammation
- Increases circulation and oxygen in blood cells.
67" X 24"
- Total Weight: 999 lbs (453 kg)
- Floor Loading: 68 lb/ft² (332 kg/m²)
- Operating Gallons: 77 Gal (291 L)
- Product Weight: 110 lbs (50 kg)
- Soaking Depth: 15.8” (402 mm)
- Outer Length: 67" (1702 mm)
- Outer Width: 31.5" (800 mm)
- Overall Height: 24” (610 mm)
- Overflow Height 16” (406 mm)
- Long Edge to Drain Center: 15.8” (401 mm)
- Short Edge to Drain Center: 33.5” (851 mm)
- Footprint (L x W): 56.8" x 26.8" (1443 mm x 681 mm)
- Center Drain White with White Drain Shipping Box Dimensions: 68.9" X 32.87" X 25.19" X 110 lbs
- Center Drain White with Chrome Drain Shipping Box Dimensions: 68.9" X 32.87" X 25.19" X 110 lbs
59" X 24"
- Total Weight: 882 lbs (400 kg)
- Floor Loading: 68 lb/ft² (332 kg/m²)
- Operating Gallons: 65 Gal (246 L)
- Product Weight: 92 lbs (42 kg)
- Soaking Depth: 15.3” (389 mm)
- Outer Length: 59" (1499 mm)
- Outer Width: 31.5" (800 mm)
- Overall Height: 24” (610 mm)
- Overflow Height 15.5” (394 mm)
- Long Edge to Drain Center: 15.8” (401 mm)
- Short Edge to Drain Center: 29.5” (749 mm)
- Footprint (L x W): 48.9" x 26.7" (1242 mm x 678 mm)
- Center Drain White with White Drain Shipping Box Dimensions: 61" X 33" X 25.2" X 112 lbs
- Center Drain White with Chrome Drain Shipping Box Dimensions: 61" X 33" X 25.2" X 112 lbs
Recommended Accessories
HOW TO MEASURE FOR A BATHTUB
When it comes to finding the perfect bathtub, the first step is to determine how much space is available to
place a new tub. And you will do so by taking 3 measurements: overall width, length, and height.
Measuring Length
Most bathtubs will sit parallel against the wall, so measuring the length of the wall will help you gauge how long your new tub can be. To measure the overall length of an existing tub, include the lip or shelf of the tub in your measurements.
Measuring Height
The height measurement will need to include the total elevation of the bath, including the base or legs if applicable. Measuring the height ensures your new bath won’t conflict with any existing outlets or ledges. Keep in mind that deeper tubs often have taller walls to step over so plan accordingly for safety.
Measuring Width
Measure the width of the area by measuring out from the wall to the furthest point you expect your tub to be. This will allow you to fit your bath into the space without gaps or overages, especially in an alcove location.
Other Things To Consider
It is also important to keep in mind your bathtubs’ weight and water capacity which is indicated in your new bathtub manual. The basin capacity indicates how many gallons the tub can hold. A US gallon of water weighs 8.34 lbs., so to determine the weight of the water within the tub when full you should multiply the basin capacity by 8.34. Your bathtub manual should also tell you the weight of the bathtub before adding water. Together, the weight of the bathtub and the added weight of the water will determine whether you need to reinforce your floor or not. Also, remember to measure your doorways and hallways to ensure the tub will fit when it’s delivered and installed. You can find all the information needed to plan your bathtub replacement within our specification and manuals.
Measuring Length
Most bathtubs will sit parallel against the wall, so measuring the length of the wall will help you gauge how long your new tub can be. To measure the overall length of an existing tub, include the lip or shelf of the tub in your measurements.
Measuring Height
The height measurement will need to include the total elevation of the bath, including the base or legs if applicable. Measuring the height ensures your new bath won’t conflict with any existing outlets or ledges. Keep in mind that deeper tubs often have taller walls to step over so plan accordingly for safety.
Measuring Width
Measure the width of the area by measuring out from the wall to the furthest point you expect your tub to be. This will allow you to fit your bath into the space without gaps or overages, especially in an alcove location.
Other Things To Consider
It is also important to keep in mind your bathtubs’ weight and water capacity which is indicated in your new bathtub manual. The basin capacity indicates how many gallons the tub can hold. A US gallon of water weighs 8.34 lbs., so to determine the weight of the water within the tub when full you should multiply the basin capacity by 8.34. Your bathtub manual should also tell you the weight of the bathtub before adding water. Together, the weight of the bathtub and the added weight of the water will determine whether you need to reinforce your floor or not. Also, remember to measure your doorways and hallways to ensure the tub will fit when it’s delivered and installed. You can find all the information needed to plan your bathtub replacement within our specification and manuals.
HYDROTHERAPY EXPERIENCES
Jacuzzi® bathtubs are available in a variety of different hydrotherapy experiences depending on the model. Find out which
one is best for you.
SOAKING
To sit, stretch, read and relax, a deep bath is a simple and calm pleasure.
To sit, stretch, read and relax, a deep bath is a simple and calm pleasure.
HEATED SOAK
The new heated soak experience allows for a longer soak without adding more hot water.
The new heated soak experience allows for a longer soak without adding more hot water.
SWIRLPOOL®
The whirlpool effect is inspired by the movement of water from eddies found in rivers and streams.
The whirlpool effect is inspired by the movement of water from eddies found in rivers and streams.
Pure Air® Bath
A caressing sensation of hot air inside thousands of bubbles. It is a smooth experience for the whole body, and a pure pleasure.
A caressing sensation of hot air inside thousands of bubbles. It is a smooth experience for the whole body, and a pure pleasure.
Whirlpool
The whirlpool tub, powered by the legendary Jacuzzi® jet system, provides bathers with an invigorating and therapeutic massage.
The whirlpool tub, powered by the legendary Jacuzzi® jet system, provides bathers with an invigorating and therapeutic massage.
Salon® Spa
A Spa Salon® gives you the best experience of both the Whirlpool bath and the Pure Air®... without limits.
A Spa Salon® gives you the best experience of both the Whirlpool bath and the Pure Air®... without limits.
