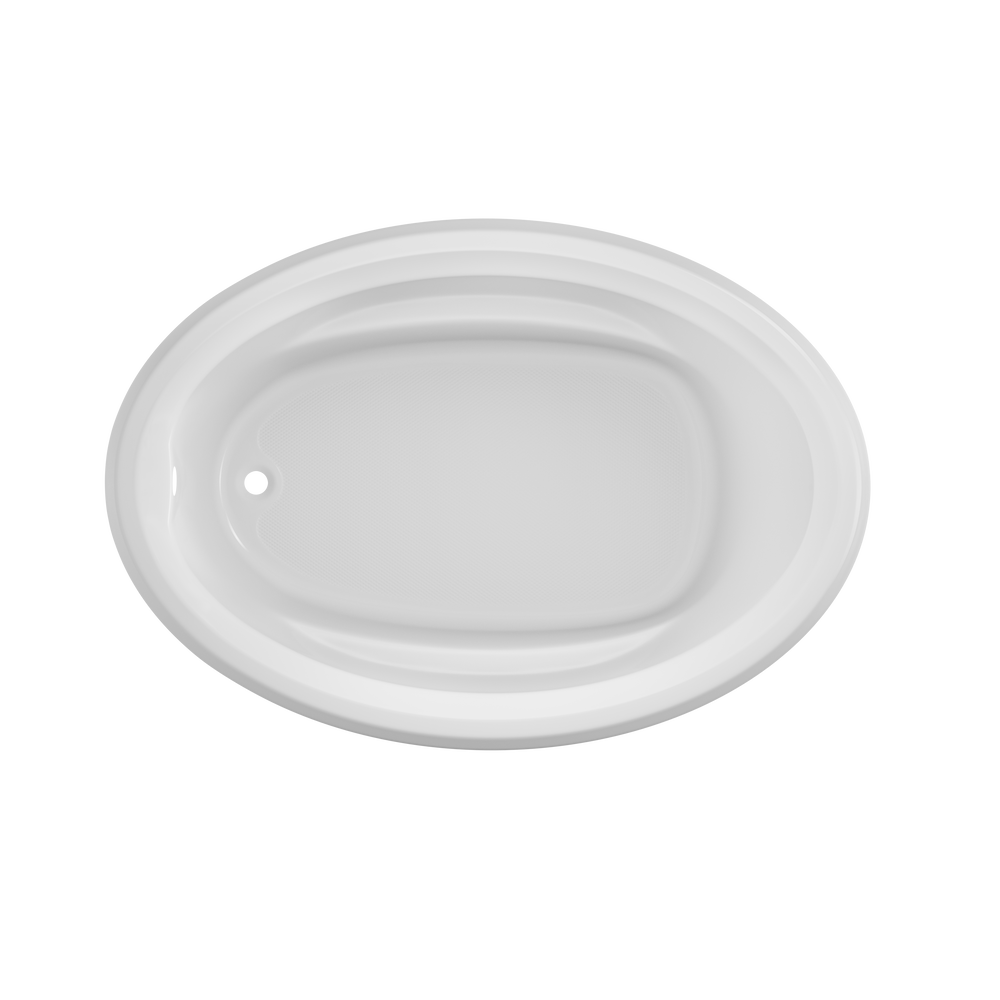

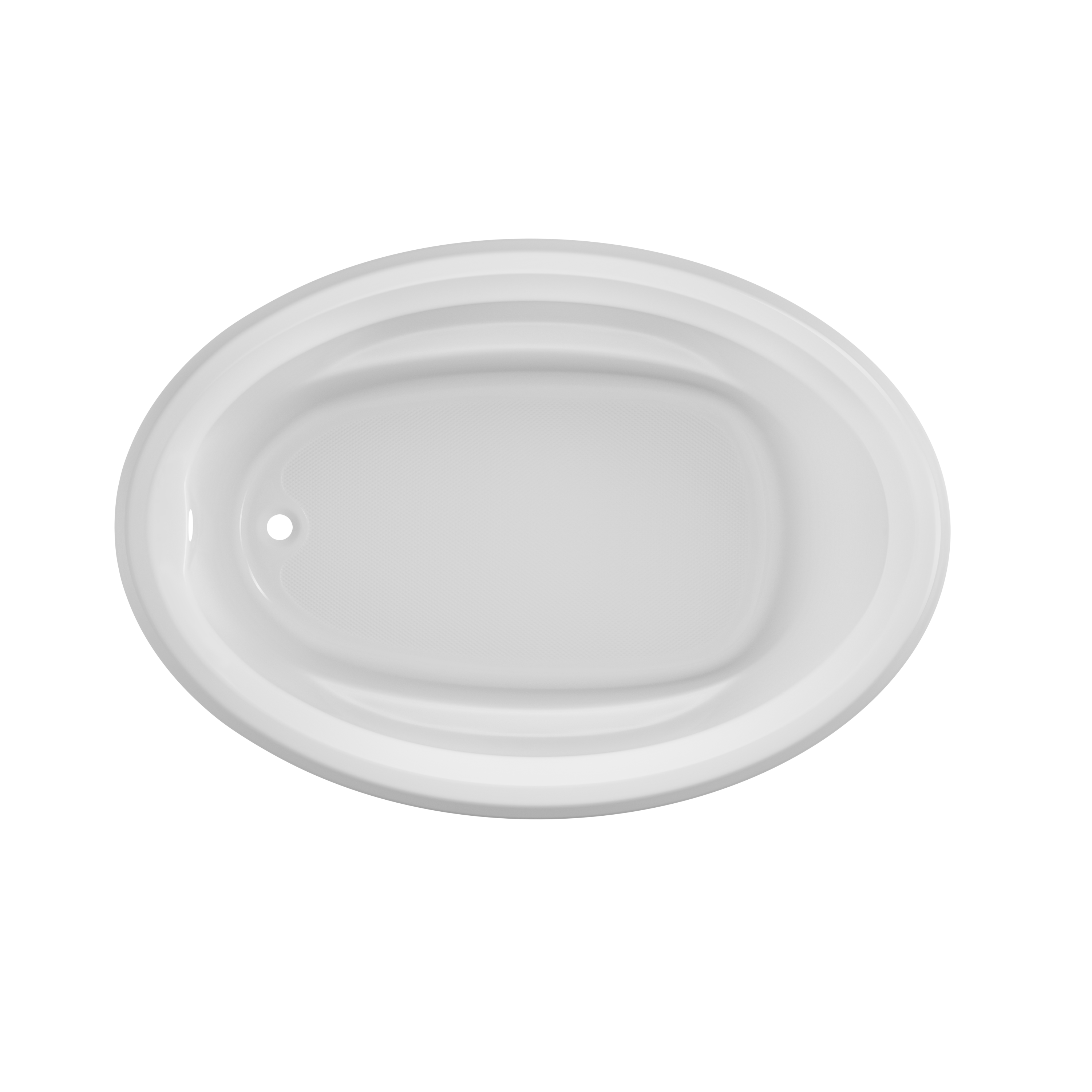

SIGNATURE® Oval Drop-In Bath
Available in 3 hydrotherapy experiences
California Prop 65 Warnings
PRODUCT DETAILS

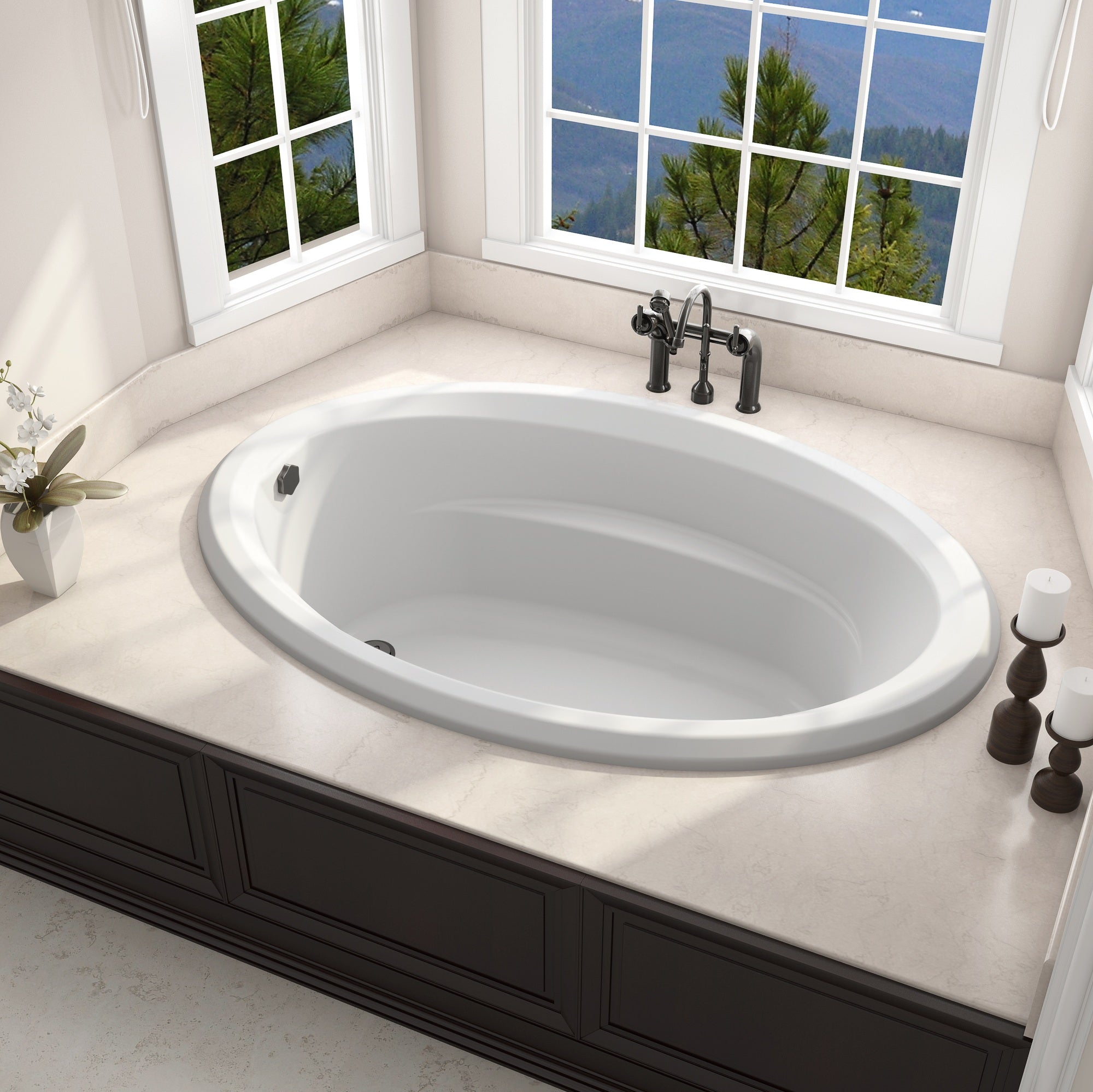

The Jacuzzi® Signature Drop-In Soaking Tub offers a deep, ergonomic bathing experience designed for total relaxation. Crafted from high-gloss acrylic, this durable tub features a contoured backrest and slip-resistant bottom for comfort and safety. With its spacious design and timeless styling, it's the perfect centerpiece for a spa-like bathroom retreat.
Jacuzzi® Signature Drop-In Bath Features:
Benefits of a Full-Body Soak:
- High-gloss acrylic finish for lasting durability and easy maintenance
- Ergonomic interior with contoured backrest for optimal comfort
- Deep soaking design supports full-body immersion and relaxation
- Slip-resistant bottom enhances safety while entering and exiting the tub
- Reversible drain installation for versatile bathroom layouts
- Made in the USA with a Limited Lifetime Warranty
- IAPMO/cUPC certified to meet rigorous ANSI quality standards
Benefits of a Full-Body Soak:
- Reduces pressure on joints and muscles
- Provides gentle, even support to the entire body
- Helps relieve inflammation and fatigue
- Promotes healthy circulation and improved oxygen flow
Left-Hand Drain
- Total Weight: 857 lbs (389 kg)
- Floor Loading: 51 lb/ft² (249 kg/m²)
- Operating Gallons (Max): 66 gallons (250 liters)
- Product Weight: 57 lbs (26 kg)
- Soaking Depth: 15.5" (394 mm)
- Outer Length: 59" (1499 mm)
- Outer Width: 41" (1041 mm)
- Overall Height: 21" (533 mm)
- Overflow Height: 16.25" (413 mm)
- Long Edge to Drain Center: 9.90" (251 mm)
- Short Edge to Drain Center: 20.50" (521 mm)
- Drain Shoe Length: 7.90" (201 mm)
- Deck/Flange Height: 2" (51 mm)
- Deck Width: 2.31" (53 mm)
- Service Access Dimensions: N/A
- Floor Cutout for Drain: 12" x 4" (305 mm x 102 mm)
- Interior Dimensions (Bottom of Bath): 42" x 24" (1067 mm x 610 mm)
- Total Weight: 962 lbs (436 kg)
- Floor Loading: 45.8 lb/ft² (224 kg/m²)
- Operating Gallons (Max): 78 gallons (295 liters)
- Product Weight: 62 lbs (28 kg)
- Soaking Depth: 15" (381 mm)
- Outer Length: 71" (1803 mm)
- Outer Width: 41" (1041 mm)
- Overall Height: 21" (533 mm)
- Overflow Height: 16.25" (413 mm)
- Long Edge to Drain Center: 10.90" (277 mm)
- Short Edge to Drain Center: 20.50" (521 mm)
- Drain Shoe Length: 8.90" (216 mm)
- Deck/Flange Height: 2" (51 mm)
- Deck Width: 2.31" (53 mm)
- Service Access Dimensions: 12" x 18" (305 mm x 457 mm)
- Floor Cutout for Drain: 12" x 4" (305 mm x 102 mm)
- Interior Dimensions (Bottom of Bath): 52.5" x 22" (1334 mm x 559 mm)
HOW TO MEASURE FOR A BATHTUB
When it comes to finding the perfect bathtub, the first step is to determine how much space is available to
place a new tub. And you will do so by taking 3 measurements: overall width, length, and height.
Measuring Length
Most bathtubs will sit parallel against the wall, so measuring the length of the wall will help you gauge how long your new tub can be. To measure the overall length of an existing tub, include the lip or shelf of the tub in your measurements.
Measuring Height
The height measurement will need to include the total elevation of the bath, including the base or legs if applicable. Measuring the height ensures your new bath won’t conflict with any existing outlets or ledges. Keep in mind that deeper tubs often have taller walls to step over so plan accordingly for safety.
Measuring Width
Measure the width of the area by measuring out from the wall to the furthest point you expect your tub to be. This will allow you to fit your bath into the space without gaps or overages, especially in an alcove location.
Other Things To Consider
It is also important to keep in mind your bathtubs’ weight and water capacity which is indicated in your new bathtub manual. The basin capacity indicates how many gallons the tub can hold. A US gallon of water weighs 8.34 lbs., so to determine the weight of the water within the tub when full you should multiply the basin capacity by 8.34. Your bathtub manual should also tell you the weight of the bathtub before adding water. Together, the weight of the bathtub and the added weight of the water will determine whether you need to reinforce your floor or not. Also, remember to measure your doorways and hallways to ensure the tub will fit when it’s delivered and installed. You can find all the information needed to plan your bathtub replacement within our specification and manuals.
Measuring Length
Most bathtubs will sit parallel against the wall, so measuring the length of the wall will help you gauge how long your new tub can be. To measure the overall length of an existing tub, include the lip or shelf of the tub in your measurements.
Measuring Height
The height measurement will need to include the total elevation of the bath, including the base or legs if applicable. Measuring the height ensures your new bath won’t conflict with any existing outlets or ledges. Keep in mind that deeper tubs often have taller walls to step over so plan accordingly for safety.
Measuring Width
Measure the width of the area by measuring out from the wall to the furthest point you expect your tub to be. This will allow you to fit your bath into the space without gaps or overages, especially in an alcove location.
Other Things To Consider
It is also important to keep in mind your bathtubs’ weight and water capacity which is indicated in your new bathtub manual. The basin capacity indicates how many gallons the tub can hold. A US gallon of water weighs 8.34 lbs., so to determine the weight of the water within the tub when full you should multiply the basin capacity by 8.34. Your bathtub manual should also tell you the weight of the bathtub before adding water. Together, the weight of the bathtub and the added weight of the water will determine whether you need to reinforce your floor or not. Also, remember to measure your doorways and hallways to ensure the tub will fit when it’s delivered and installed. You can find all the information needed to plan your bathtub replacement within our specification and manuals.
HYDROTHERAPY EXPERIENCES
Jacuzzi® bathtubs are available in a variety of different hydrotherapy experiences depending on the model. Find out which
one is best for you.
SOAKING
To sit, stretch, read and relax, a deep bath is a simple and calm pleasure.
To sit, stretch, read and relax, a deep bath is a simple and calm pleasure.
HEATED SOAK
The new heated soak experience allows for a longer soak without adding more hot water.
The new heated soak experience allows for a longer soak without adding more hot water.
SWIRLPOOL®
The whirlpool effect is inspired by the movement of water from eddies found in rivers and streams.
The whirlpool effect is inspired by the movement of water from eddies found in rivers and streams.
Pure Air® Bath
A caressing sensation of hot air inside thousands of bubbles. It is a smooth experience for the whole body, and a pure pleasure.
A caressing sensation of hot air inside thousands of bubbles. It is a smooth experience for the whole body, and a pure pleasure.
Whirlpool
The whirlpool tub, powered by the legendary Jacuzzi® jet system, provides bathers with an invigorating and therapeutic massage.
The whirlpool tub, powered by the legendary Jacuzzi® jet system, provides bathers with an invigorating and therapeutic massage.
Salon® Spa
A Spa Salon® gives you the best experience of both the Whirlpool bath and the Pure Air®... without limits.
A Spa Salon® gives you the best experience of both the Whirlpool bath and the Pure Air®... without limits.
